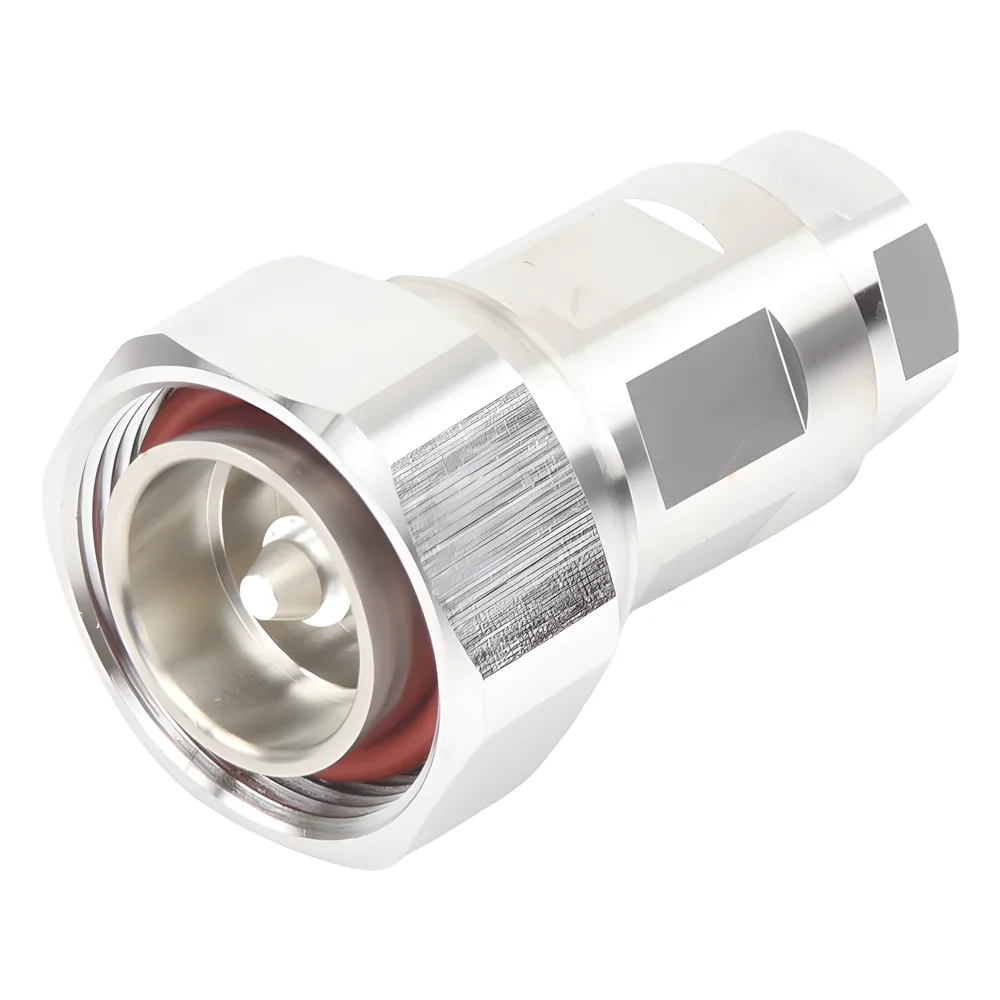

Conector DIN 7/16 Macho Para Cable FSJ4-50B
- SKU
- F4PDMV2-C
- Connector Impedance: 50 ohm
- Operating Frequency Band: 0 – 7500 MHz
- Average Power at Frequency: 1.0 kW @ 900 MHz
- Cable Impedance: 50 ohm
- 3rd Order IMD, typical: -120 dBm @ 910 MHz
- 3rd Order IMD Test Method: Two +43 dBm carriers
- RF Operating Voltage, maximum (vrms): 884.00 V
- dc Test Voltage: 2500 V
Publicidad
- Garantía por escrito
- Instalación y configuración
- Facturamos
Electrical Specifications
- Connector Impedance: 50 ohm
- Operating Frequency Band: 0 – 7500 MHz
- Average Power at Frequency: 1.0 kW @ 900 MHz
- Cable Impedance: 50 ohm
- 3rd Order IMD, typical: -120 dBm @ 910 MHz
- 3rd Order IMD Test Method: Two +43 dBm carriers
- RF Operating Voltage, maximum (vrms): 884.00 V
- dc Test Voltage: 2500 V
- Outer Contact Resistance, maximum: 1.50 mOhm
- Inner Contact Resistance, maximum: 0.80 mOhm
- Insulation Resistance, minimum: 5000 MOhm
- Peak Power, maximum: 15.60 kW
- Insertion Loss, typical: 0.05 dB
- Shielding Effectiveness: -110 dB
Additional Information
- Insertion Loss Formula: 0.05√¯freq (GHz) (not applicable for elliptical waveguide)
More information about Insertion Loss formula
Para cables coaxialesLPSF-450B, FSJ4-50B
Herramientas recomendadas:
MCPT-1412 -- Herramienta manual para preparar cable Heliax.
Publicidad
Productos relacionados

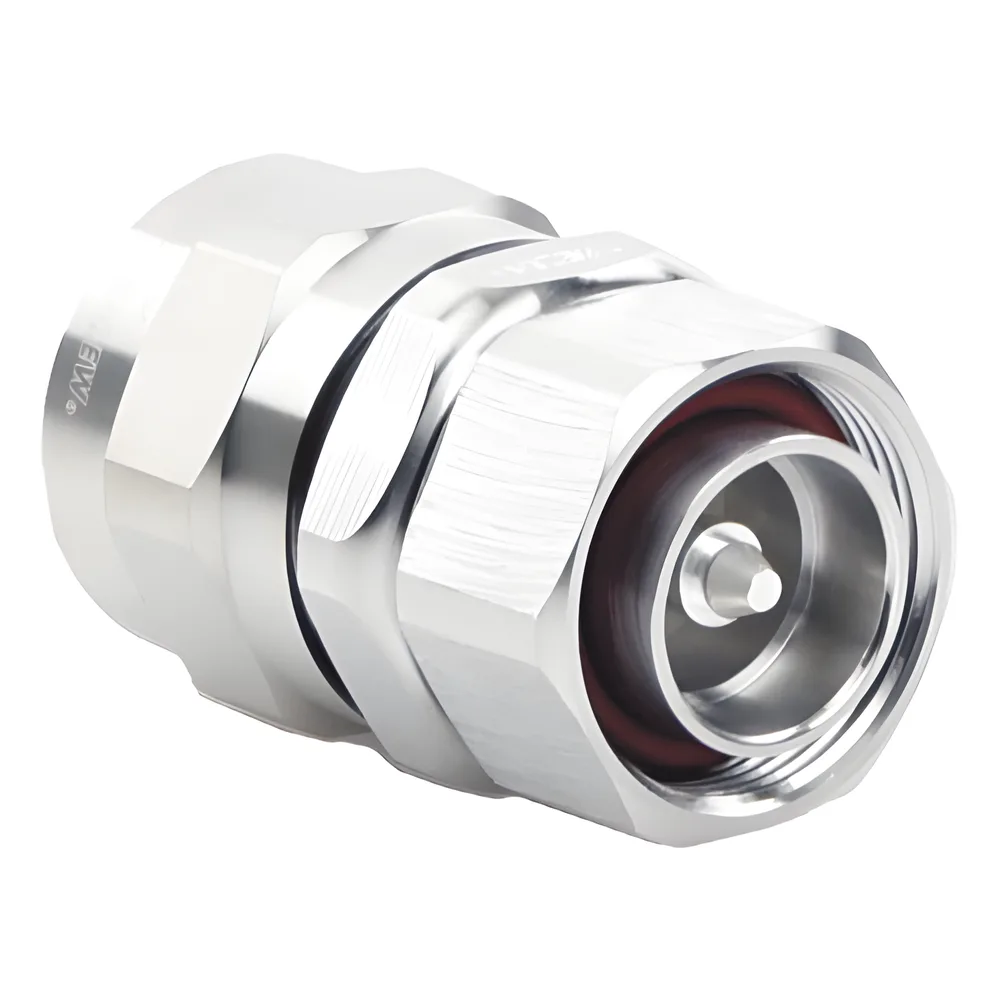

Conector DIN 7-16 DIN Macho para cables de 7/8", FXL-780, AVA5-50.
