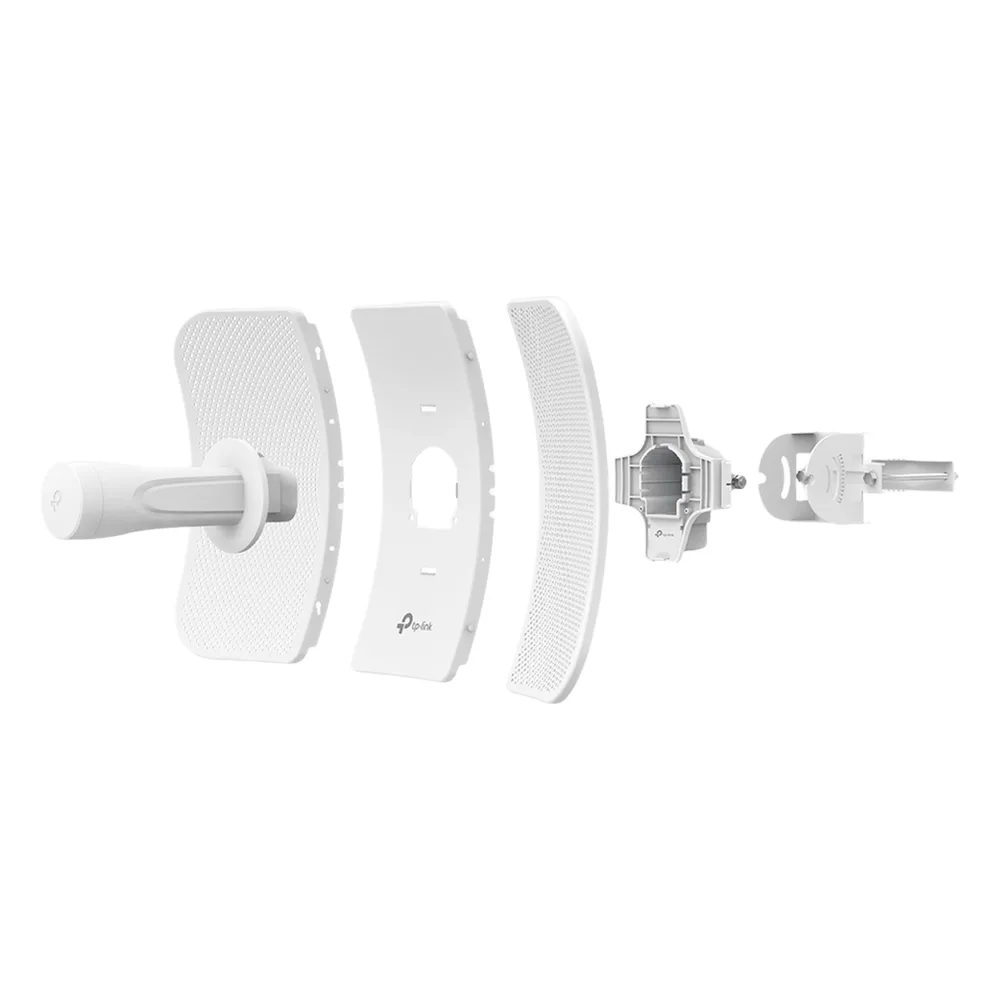

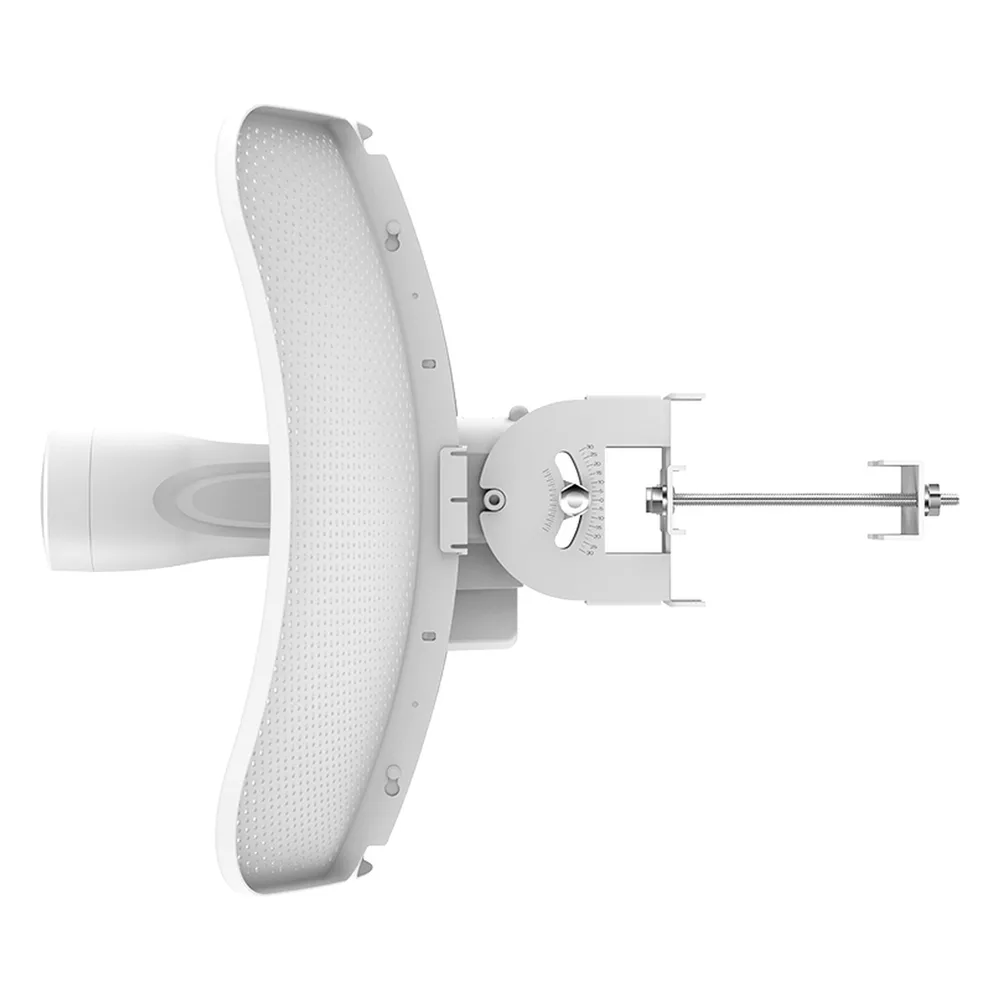

CPE de Exterior de 5 GHz a 150Mbps, Antena direccional de 23dBi, potencia de 23 dBm, PoE pasivo

CARACTERÍSTICAS DE HARDWARE

• Procesador: Qualcomm 560MHz CPU, MIPS 74Kc
• Memoria: 64MB DDR2 RAM, 8MB Flash
• Interface: 1 10/100Mbps Shielded Ethernet Port (LAN/POE) 1 Reset Button
• Fuente de Alimentación: Passive Power over Ethernet via LAN (+4,5pins; -7,8pins) Voltage range: 16-27VDC
• Dimensiones (W X D X H): 350 x 255 x 207 mm (13.8 x 10.0 x 8.1 in.)
• Ganancia de Antena: 23dBi
• Cobertura de Antena: 7°(Azimuth), 10°(Elevation)
• Protección: 15KV ESD Protection 6KV Lightning Protection
• Cercado: Material: Outdoor PC stabilized plastic Weatherproof: IP65 water and dust proof design

CARACTERÍSTICAS INALÁMBRICAS

• Estándares Inalámbricos: IEEE 802.11a/n
• Protocolo Propietario: TDMA Mode (with Pharos MAXtream enabled)
• Velocidades Inalámbricas: Up to 150Mbps (40MHz, Dynamic) Up to 72.2Mbps (20MHz, Dynamic) Up to 36.1Mbps (10MHz, Dynamic) Up to 18.05Mbps (5MHz, Dynamic)
• Frecuencia: 5.15~5.85GHz
• Potencia de Transmision: Max. 23dBm (Adjustable power by 1dBm)

CARACTERÍSTICAS DE SOFTWARE

• IPv6: Yes
• Configuracion De Red: WAN: Static/Dynamic/PPPoE/L2TP/PPTP LAN: Static/Dynamic/DHCP Forwarding: ALG/UPnP/Virtual Server/Port Trigger Security: SPI Firewall/ Ping Forbidden/DoS Protection Access Control Static Routing Bandwidth Control IP & MAC Binding
• Configuraciones Inalámbricas: Pharos MAXtream TDMA Technology Selectable Channel Width: 5/10/20/40MHz Auto Channel Selection Transmit Power Control Dynamic Frequency Selection(DFS) WDS Enable/Disable Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption SSID Broadcast Enable/Disable Multi-SSID with VLAN Tagging(AP Mode only) Distance/ACK Timeout Setting Wireless MAC Address Filter Wireless Advanced: Beacon Interval/RTS Threshold/Fragmentation Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia
• Administración: Discovery and Remote Management via Pharos Control application HTTP/HTTPS Web-based management System log SNMP Agent(v2c) Ping Watch Dog Dynamic DDNS SSH Server
• Herramientas de sistema: Indicators: Signal Strength/Noise/Transmit CCQ/CPU/Memory Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP Spectrum Analyzer Speed Test Ping Traceroute
• Optimizaciones a Nivel de Sistema: Optimized IGMP Snooping/Proxy for multicast applications Hardware watch dog

POE ADAPTER FEATURES

• Dimensions(W x D x H): 85.8×43.9×29.7 mm
• Interfaces: 1 AC Jack with Earth Ground 1 10/100Mbps Shielded Ethernet Port (Power + Data) 1 10/100Mbps Shielded Ethernet Port (Data)
• Botón: Remote Reset Button
• Power Status LEDs: Green
• Input: 100-240VAC, 50/60Hz
• Output: 24VDC, 0.6A Max +4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)
• Eficiencia: >84.29%
• Certifications: CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark

OTROS

• Certificacion: CE, FCC, RoHS, IP65
• Contenidos del Paquete: Outdoor Wireless CPE 24V 0.5A Passive PoE Adapter Pole Mounting Straps AC Power Cord Installation Guide
• Requisitos del Sistema: Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux. Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended.
• Ambiente: Operating Temperature: -40°C~70°C (-40°F~158°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~95% non-condensing
